Where does Windows store the button assignment for foot pedal LFH2330 in the Windows registry?

The configuration for the button assignment is located within the Windows Registry, a critical component of the Windows operating system that stores settings and options for the operating system and installed applications. To access the specific settings for button assignments, you will need to navigate to the following path in the Registry Editor:

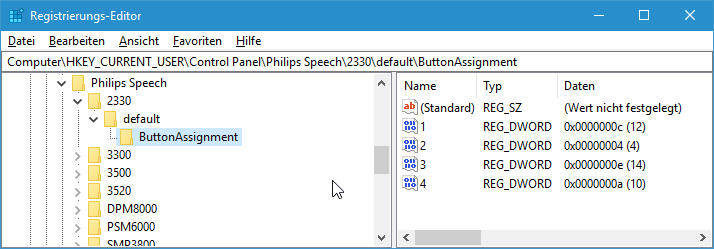

HKEY_CURRENT_USER\Control Panel\Philips Speech\2330\default\ButtonAssignement

In this location, you will find the relevant entries that define how buttons on your Philips Speech device are configured. This allows users to customize their experience according to their preferences, ensuring that the device operates in a manner that best suits their needs. Modifying these settings can enhance productivity and improve the overall functionality of the speech recognition software associated with the device.

where
Key 1 is the right pedal
Key 2 is the middle pedal
Key 3 is the left pedal
Key 4 is the EOL button

Button values:
Fast rewind: 0xc
Fast forward: 0xe
Play (press & hold): 0x4
Play (toggle): 0x14
EOL: 0xa
Disable Button: 0x0

Note

The keys associated with the foot pedal can be assigned specific values, allowing users to modify the behavior of the pedal according to their preferences. This customization is particularly beneficial for those who rely on foot pedals in their transcription or dictation workflows, as it enhances efficiency and comfort during use.

In a typical SpeechExec environment, users have the advantage of configuring the foot pedal's style through the Footcontrol Wizard. This user-friendly tool provides a straightforward interface for making adjustments, enabling users to tailor the functionality of their foot pedals seamlessly. By using the Footcontrol Wizard, individuals can easily assign different commands to the pedal's keys, optimizing their workflow to suit their specific needs.

However, in Terminal Server environments, the process of changing the keys is slightly different. In these cases, users are unable to utilize the Footcontrol Wizard for configuration. Instead, they must rely on the Remote Device Management Tool, which offers an alternative method for key assignment. This tool allows for remote management of devices, ensuring that users can still customize their foot pedal settings even in a multi-user server environment.

Additionally, advanced users can also make changes by directly accessing specific registry keys. This method requires a deeper understanding of the system's configuration but provides a powerful way to alter the behavior of the foot pedal. By modifying these registry keys, users can achieve a level of customization that might not be possible through standard interfaces, giving them greater control over their transcription or dictation experience.
